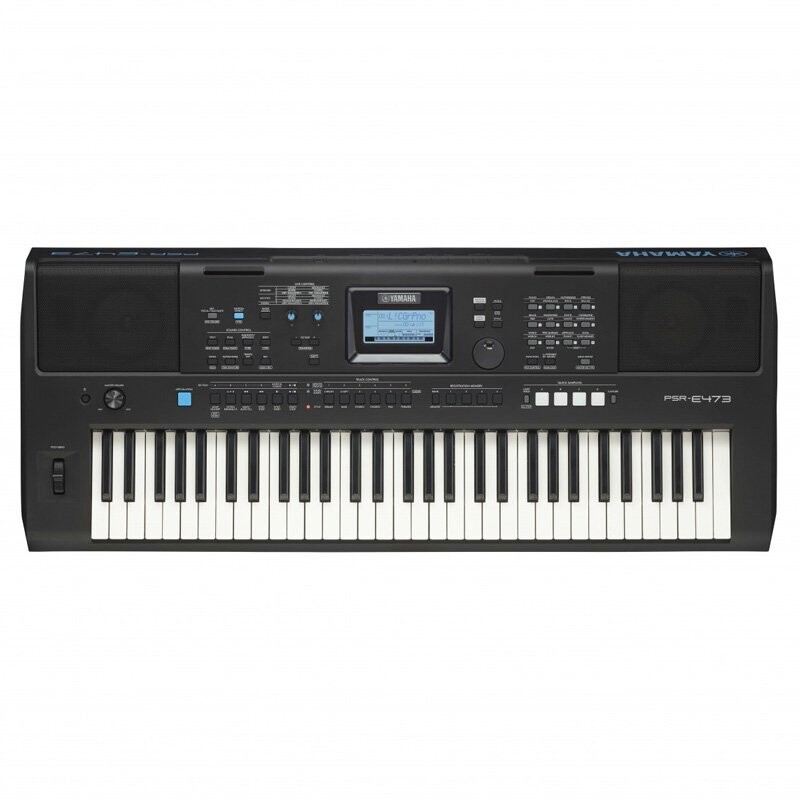

Yamaha PSRE473 Portable Keyboard 61 Keys, Black

The Yamaha PSR E473 Portable Keyboard brings you all the tools you need to create professional-sounding music. Whether you're performing or recording, this keyboard has you covered with stunning sounds, exciting effects, and helpful features. FEATURES:

• Ultra-realistic instrument sounds
• Live control features bring your performance to life
• Microphone input and built-in vocal effects
• Sampler function for unlimited creativity

SPECIFICATIONS: Control Interface

• Keyboard:
  • Number of keys: 61
  • Touch Response: Soft, Medium, Hard, Fixed
• Other Controllers:
  • Pitch Bend Wheel: Yes
  • Knobs:
• Language: English

Voices

• Tone Generation Technology: AWM Stereo Sampling
• Polyphony (max.): 64
• Number of Voices: 820 (294 Panel Voices + 28 Drums/SFX Kits + 40 Arpeggio + 458 XGlite Voices)
• Compatibility: GM, XGlite

Effects

• Reverb: 12
• Chorus: 5
• Master EQ: 4
• DSP: DSP1:41, DSP2:12

Accompaniment Styles

• Number of Styles: 290
• Fingering: Multi- Finger, Smart Chord
• External Styles: 10
• Other Features: One Touch Setting, Style File Format

Groove Creator

• Number of Grooves: 35
• Number of Sections: 5 (4 Sections + 1 musical Climax/Ending)

Songs (MIDI)

• Number of Preset Songs: 30
• Number of Songs: 10
• Number of Tracks: 6 (5 Melody +1 Style/Groove Creator)
• Data Capacity: Approx. 19,000 notes (when only “melody” tracks are recorded
• Data Format – Playback: SMF Formats 0 & 1
• Data Format – Recording: Original File Format (SMF 0 conversion function)

USB Audio Recorder

• Recording Time: 80 min (approx. 0.9GB) per song
• Playback/Recording: WAV (44.1kHz 16 bit stereo)

Quick Sampling

• Sampling Type: Oneshot, Loop
• Samples (Preset/User): 4
• Sampling Time: Approx 9.6sec
• Sampling Sources: AUX IN, MIC INPUT, USB audio interface, WAV format files
• Sampling Format: Original File Format (16bit, stereo)
• Sampling Rate: 44.1 kHz

Functions

• Voices:
  • Dual: Yes
  • Split: Yes
  • Harmony: 26
  • Arpeggio: 152
  • Articulation: Yes
• Registration Memory:
  • Number of Buttons: 9
  • Control: Freeze
• Overall Controls:
  • Metronome: Yes
  • Tempo Range: 11 – 280
  • Transpose: -12 to 0, 0 to +12
  • Tuning: 427.0 – 440.0 – 453.0 Hz (approx. 0.2Hz increments)
  • Octave Button: Yes
  • Scale Type: 5 types
• Miscellaneous:
  • PIANO Button: Yes
  • Demo: Yes
  • Melody Suppressor: Yes
  • Crossfade: Yes
  • USB audio interface: 44.1 kHz, 16bit stereo
  • Motion Effect: 57
  • Mega Boost: 2 steps (approx. +3dB, and +6db)

Storage and Connectivity

• Storage
  • Internal Memory: Approx. 1.72 MB
  • External Drives: USB Flash Drives
• Connectivity:
  • DC In: 12V
  • Headphones: Standard stereo phone jack
  • Microphone: Yes
  • Sustain Pedal: Yes
  • AUX IN: Yes (Stereo mini jack)
  • OUTPUT: Standard stereo phone jacks: L/L+R/R
  • USB TO DEVICE: Yes
  • USB TO HOST: Yes
• Sound System:
  • Amplifiers: 6W + 6W
  • Speakers: 12cm x 2

Power Supply

• AC Adaptor:PA-150 or an equivalent recommended by Yamaha (Output: DC 12V, 1.5A)
• Batteries: Six 1.5V ''AA'' size alkaline (LR6), manganese (R6) or six 1.2V “AA” size Ni-MH rechargeable batteries (HR6)
• Power Consumption: 9 W (When using PA-150 AC adaptor)
• Auto Power Off: Yes

Size & Weight

• Dimensions (W x D x H): 992mm x 404mm x 136mm
• Weight: 7.0kg

Included Accessories

• Owner's Manual AC adaptor (PA-150 or an equivalent recommended by Yamaha) Music Rest.
