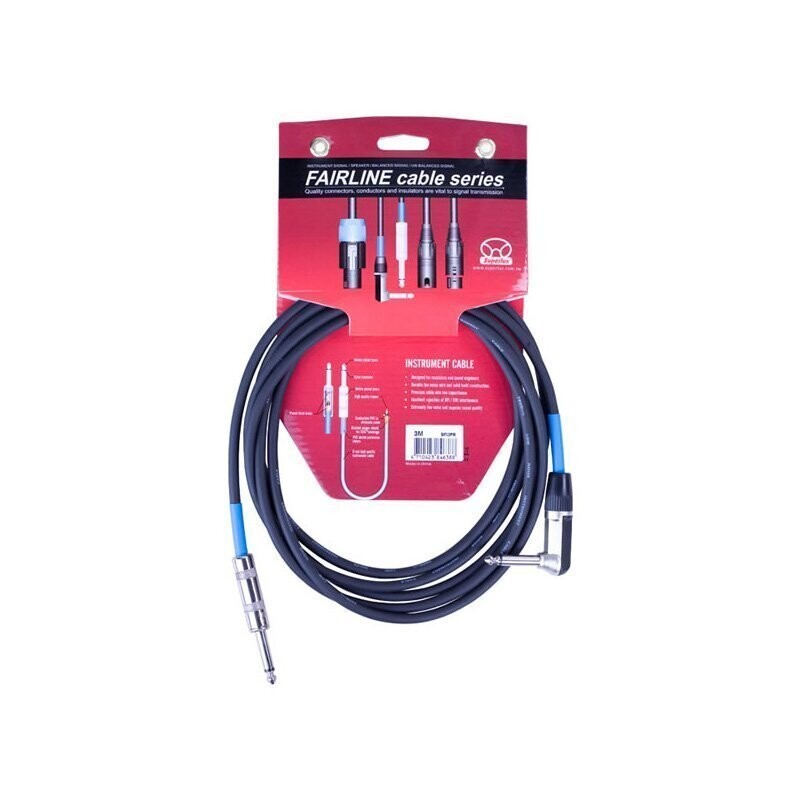

SFI3PR - 3m Instrument Signal Cable Angle and straight 6.3 mm (1/4") mono plugs AWG#24, cross-sectional area 0.20mm² SPECIFICATIONS:Length: 3 m Connectors: Angle and straight 6.3 mm (1/4") mono plugs Conduct Area: 0.2 mm², AWG#24 Composition of conductor (Diameter: mm): 25×0.12 mm bare copper Conductor isolation: PE Composition of cores: 1 core Screen: 48 wires,spiral wound copper wire screen Overall jacket: PVC, black Overall diameter: 6±0.2 mm Weight: 47 g/m Working temperature(mobile): -15C~+90°C Working temperature(fixed): -20C~+90°C Conductor Resistance: 0.147 Ω Capacity (cond./cond.): 120 pF/m Test Voltage: 400 V
