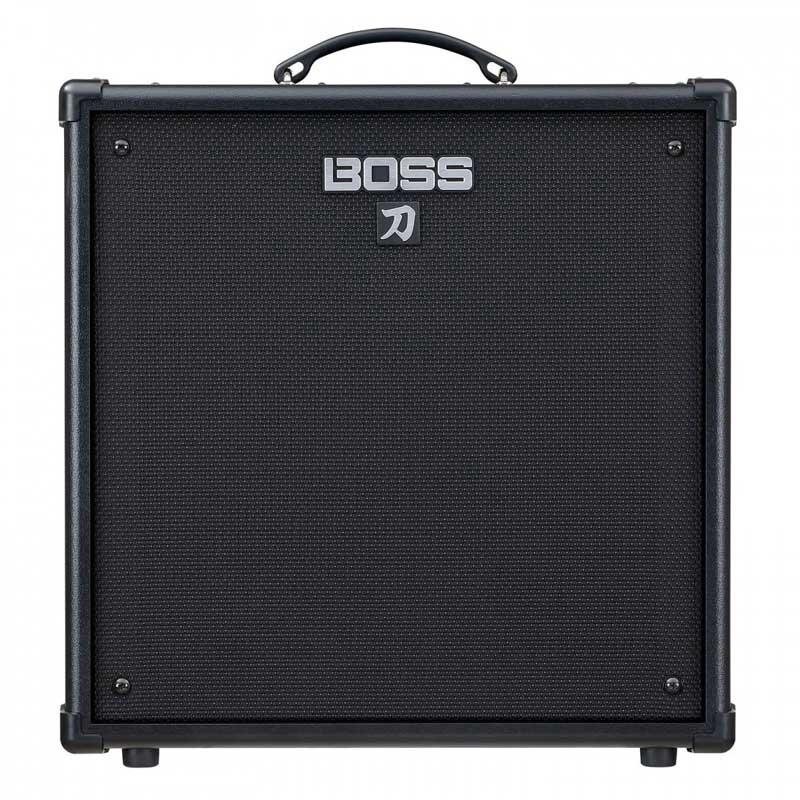

Boss Katana 110 Bass Amplifier Combo 60W

The Boss Katana-110 Bass Amplifier Combo is here to boost the output of serious bassists. Following the breakthrough design of the guitar Katana series, this powerful amplifier promises to give you the same articulate, crisp tones and stunning versatility. Dive into the three distinct tonal characters offered by the type setting. What's more, you can modify them endlessly thanks to a series of in-built effects. If those aren't enough, there's an effects loop with expression pedal input so you can draw out any sound imaginable. FEATURES:

• Blast out bombastic bass tones
• Shape your sound with a multitude of controls and EQ options
• Unleash a crackling boom with a powerful drive channel
• Unlock any sound imaginable with an effects loop and expression pedal input

SPECIFICATIONS:

• Product Name Boss Katana-110 Bass Amplifier Combo
• Product Code: KTN110B

General

• Power Output: 60 Watts
• Nominal Input Level:
  • INPUT: -10 dBu (1 M ohm)
  • POWER AMP IN: -10 dBu (20 k ohms)
  • AUX IN: -10 dBu (20 k ohms)
  • RETURN IN: -10 dBu (100 k ohm)
• Power Consumption: 77 Watts

Controls

• Main Controls: Power, Master Volume, Power Control (Standy, 1 W, MAX), Tweeter
• Input FX: Comp button, Drive button, Comp knob, Drive knob
• Amplifier: Pad button , Shape button, Type knob (Vintage, Flat, Modern) Gain knob, Volume knob
• Blend: Blend button, Dry level knob
• Equalizer: Low mid button, High mid button, Bass knob, Low mid knob, high mid knob, treble knob
• Effects: FX1 button, FX2 button, TAP button, FX1 knob, FX2 knob
• Tone Setting: CH1 button, CH2 button, CH3 button, Panel button
• Balanced Out: GND Lift switch (Off, On) Select switch (Post, Pre, Direct)

Indicators

• COMP
• DRIVE
• PAD
• SHAPE
• BLEND
• LOW MID
• HIGH MID
• FX1
• FX2
• TAP
• CH1
• CH2
• CH3
• PANEL
• TWEETER

Connectors:

• INPUT jack: 1/4-inch phone type
• POWER AMP IN jack: 1/4-inch phone type
• BALANCED OUT jack: 1/4-inch phone type
• SEND jack: 1/4-inch phone type
• RETURN jack: 1/4-inch phone type
• REC OUT/PHONES jack: Stereo 1/4-inch phone type
• EXP PEDAL/CTL CH1/CH2 jack: 1/4-inch TRS phone type
• GA-FC jack: 1/4-inch TRS phone type
• AUX IN jack: Stereo miniature phone type
• USB port: USB B type
• BLUETOOTH ADAPTOR SLOT: BluetoothⓇ Audio MIDI Dual Adaptor
• AC IN: jack

Dimensions & Weight

• Height: 500 mm
• Width: 470mm
• Depth: 300mm
• Weight: 16.8kg

Accessories

• Owner's Manual
• Power Cord
• GA-FC sticker
