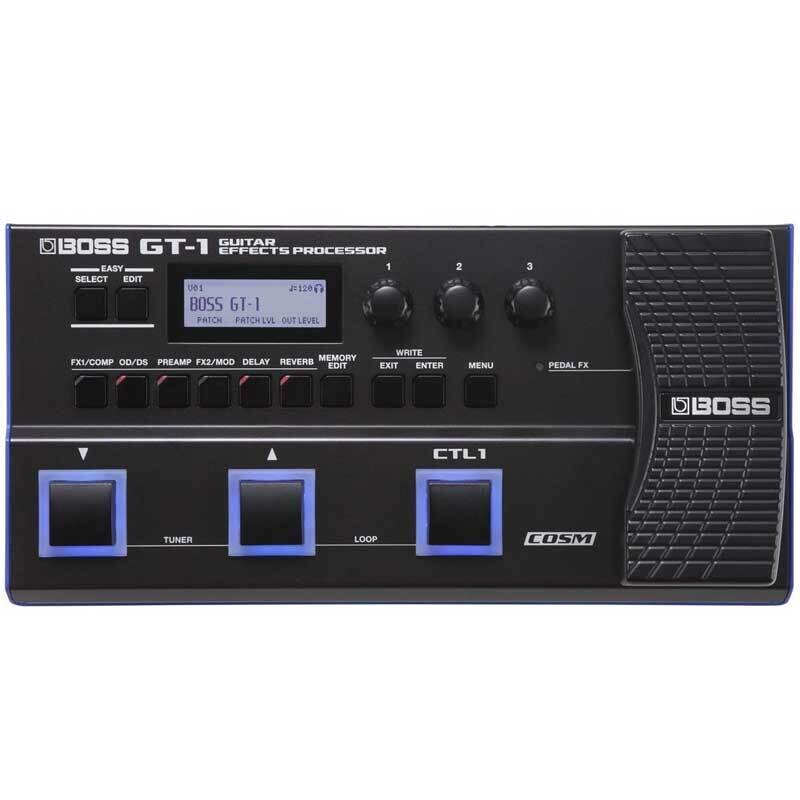

Boss GT1 Guitar Effects Processor

The Boss GT-1 Guitar Effects Processor delivers a wide range of high quality effects in a compact and lightweight design, perfect for any travelling musician. FEATURES:

• A Lightweight and Compact Design for Easy Portability
• Features Boss’ Flagship-Class Sound Engine to Provide Incredible Effects
• A Modern Design with Rounded Edges to Provide Safe Transport in Guitar Bags
• Easy Select and Easy Edit Functions for Quickly Choosing and Tweaking Patches
• Has A Battery Life of Approximately Seven Hours, Perfect for Busking and Mobile Gigs
• Onboard Control Switch and Expression Pedal for Easy Effect Control
• Download Ready-to-Play Pro Patches for Free from the Boss Tone Central

SPECIFICATIONS:

• Display:Graphics LCD (132 x 32 Dots, Backlit LCD)
• Sampling Frequency:1 kHz
• AD Conversion:24 Bits, AF Method
• DA Conversion:24 Bits
• Effects:108 Types
• Patches:
  • User:99
  • Preset:99
• Phrase Loop:32 Seconds
• Nominal Input Level:
  • Input:-10 dBu
  • Aux in:-120 dBu
• Maximum Input Level:
  • Input:-7 dBu
  • Aux in:0 dBu
• Input Impedance:
  • Input:1 M ohm
  • Aux in:27 k ohms
• Nominal Output Level:
  • Output (L/Mono, R):-10 dBu
  • Phones:-10 dBu
• Output Impedance:
  • Output (L/Mono, R):1 k ohm
  • Phones:44 ohms

• Recommended Load Impedance:

• Output (L/Mono, R):10 k ohms or Greater
• Phones:44 ohms or Greater

• Controls:

• Down Footswitch
• Up Footswitch
• CTL1 Footswitch
• Easy Select Button
• Easy Edit Button
• FX1/Comp Button
• OD/DS Button
• Preamp Button
• FX2/Mod Button
• Delay Button
• Reverb Button
• Memory Edit Button
• Exit Button
• Enter Button
• Menu Button
• 1 Knob
• 2 Knob
• 3 Knob
• Expression Pedal

Connectors

• Input Jack:1/4-Inch Phone Type
• Output (L/Mono, R) Jack:1/4-Inch Phone Type
• CTL2, 3/EXP2 Jack:1/4-Inch TRS Phone Type
• Aux in Jack:Stereo Miniature Phone Type
• USB Computer Port:USB Type B
• DC in Jack

Power

• Power Supple:4 x Alkaline Batter (AA, LR6), AC Adaptor (Sold Seperately)
• Current Draw:200 mA
• Expected Battery Life: 7 Hours

Dimensions

• Width:12-1/16” (305mm)
• Depth:6” (152mm)
• Height:2-1/4” (56mm)
• Weight:3 kg
