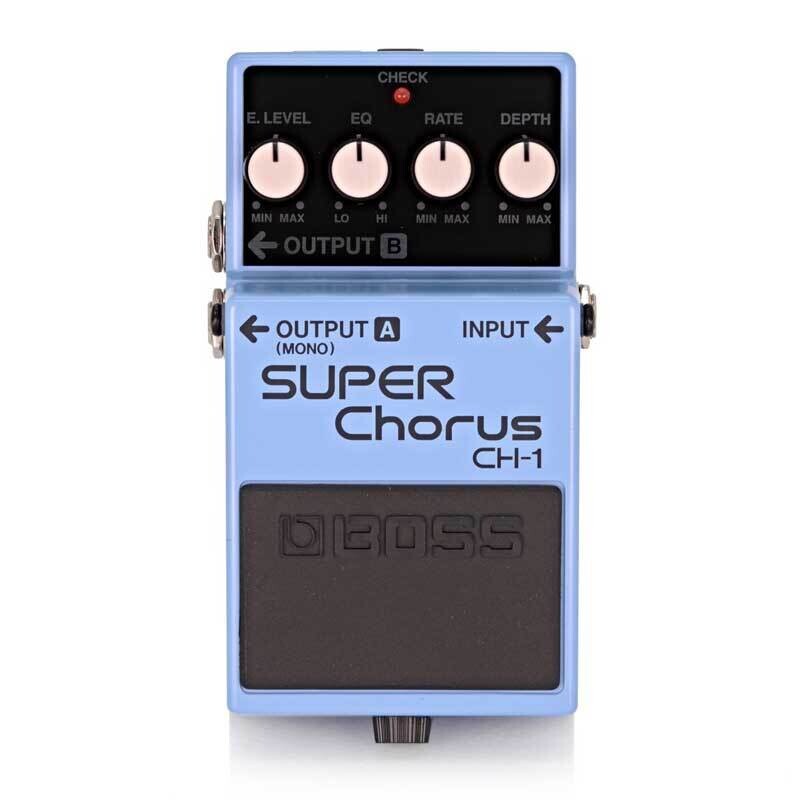

The Boss CH-1 Super Chorus Pedal delivers a clean chorus sound with crystal-clear highs and a unique stereo effect, variable between the left and right speakers. Provided with four controls, effect level, equaliser, rate and depth, the CH-1 provides a variety of chorus sounds that will add texture to any performance. Its standard Boss design means it's built to withstand life on the road. FEATURES:
Classic BOSS chorus pedal with clean, brilliant sound for guitar and keyboards
Effect Level, EQ, Rate and Depth knobs allow for precise shaping of sound
Features Mono input and Stereo outputs for connection to dual amps
Roadworthy design is ideal for gigging musicians
Basic layout include control options for Effect Level, EQ, Rate and Depth
SPECIFICATIONS:
Input Impedance:1 M ohms
Output Impedance:10 k ohms or greater
Residual Noise Level:-95 dBu (IHF-A, Typ.)
Connectors:INPUT Jack, OUTPUT Jack A (mono)/ B, AC Adaptor Jack (DC 9 V)
Power Supply:DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor
Current Draw:15 mA (DC 9 V)
Accessories:Dry Battery 9 V type (6F22/9 V)
Dimensions:(W) 73 mm, 2-7/8 inches (D) 129 mm, 5-1/8 inches (H) 59 mm, 2-3/8 inches
